EZLoop USB VoIP Phone


The EZLoop USB VoIP Phone is a plug and play IP phone with a USB interface. With its streamline design, the USB VoIP Phone provides standard H.323/SIP Internet telephony protocols which can be supported by different software providers. The USB VoIP Phone is easy to operate and configure for Home and Office / SOHO users.

No drivers needed.

Features

High Mobility

Provided real-time volume adjustable button

Phonebook for registering favorite numbers

History of Received calls, Called Numbers and Missed calls

Call Transfer and Redial options


Mechanical Specifications

Physical Connectors

One USB N-Male connector

Cabling

USB A-type connector (6.56 ft/2 meters))

Standard Support

Conform to USB 12 Mbps Spec. Version 1.1
Conform to USB Audio Device Release 1.0

Dimensions and Weight

2” (W) x 1” (H) x 5” (L)
0.5 Lbs (1.11 Kg)

Operating Voltage

4V ~ 5.25V

Operating Temperature

41 ~ 104°F (5 ~ 40 _)

Operating Humidity

20% ~ 80% RH


Software Specifications

Codec Supported

g729, g723.1, g711u, g711a

Proxy Supported

SIP Proxy, Out Bound Proxy, Stun Server

DTMF

RFC2833, Tone

System Specifications

Processor

Intel 486 DX 66 or above

Storage

32MB RAM, 10MB Hard Disk

Internet Service

Dial up, ISDN, Lease Line, xDSL, or LAN

Operating System

Microsoft Windows 98se/ME/2000XP

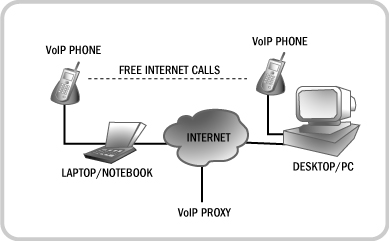

Application Diagram

Download PDF Information
